Our Diaper Bag Making Machines are engineered to deliver speed, precision, and consistent quality for modern flexible packaging applications. Designed with advanced automation and servo-controlled technology, these pouch making machines pouch making machines efficiently manufacture high-quality diaper bags diaper bags while supporting multiple film structures and bag formats. Whether for hygiene products or consumer packaging, our solutions provide reliable performance and increased production efficiency.
What are Bag Making Machines?
Bag making machines are specialized converting systems that transform flexible plastic films into finished packaging bags through automated sealing, cutting, folding, and stacking processes. These machines are widely used across industries producing food packaging, hygiene products, retail bags, medical packaging, and industrial applications. Modern pouch making machines are designed to improve production speed, reduce material waste, and maintain excellent seal quality.
The growing demand for hygiene products has significantly increased the need for advanced Diaper Bag Making Machines in India. Manufacturers require reliable equipment capable of producing premium diaper bags with consistent quality and high output while accommodating various film materials and packaging requirements.
Meet the VEGA Servo Wicketers built to support the growing demand for Diaper Bag Making Machines in India.
What is a Diaper Bag Making Machine?
A diaper bag making machine is an advanced packaging system developed to manufacture high-quality wicketer bags used for diapers, sanitary products, tissues, and other hygiene applications. These machines combine precise film handling, accurate sealing, perforation, punching, and automated stacking to deliver consistent production at high speeds. Modern pouch making machines are designed to process different film types while maintaining uniform bag dimensions and superior sealing performance.

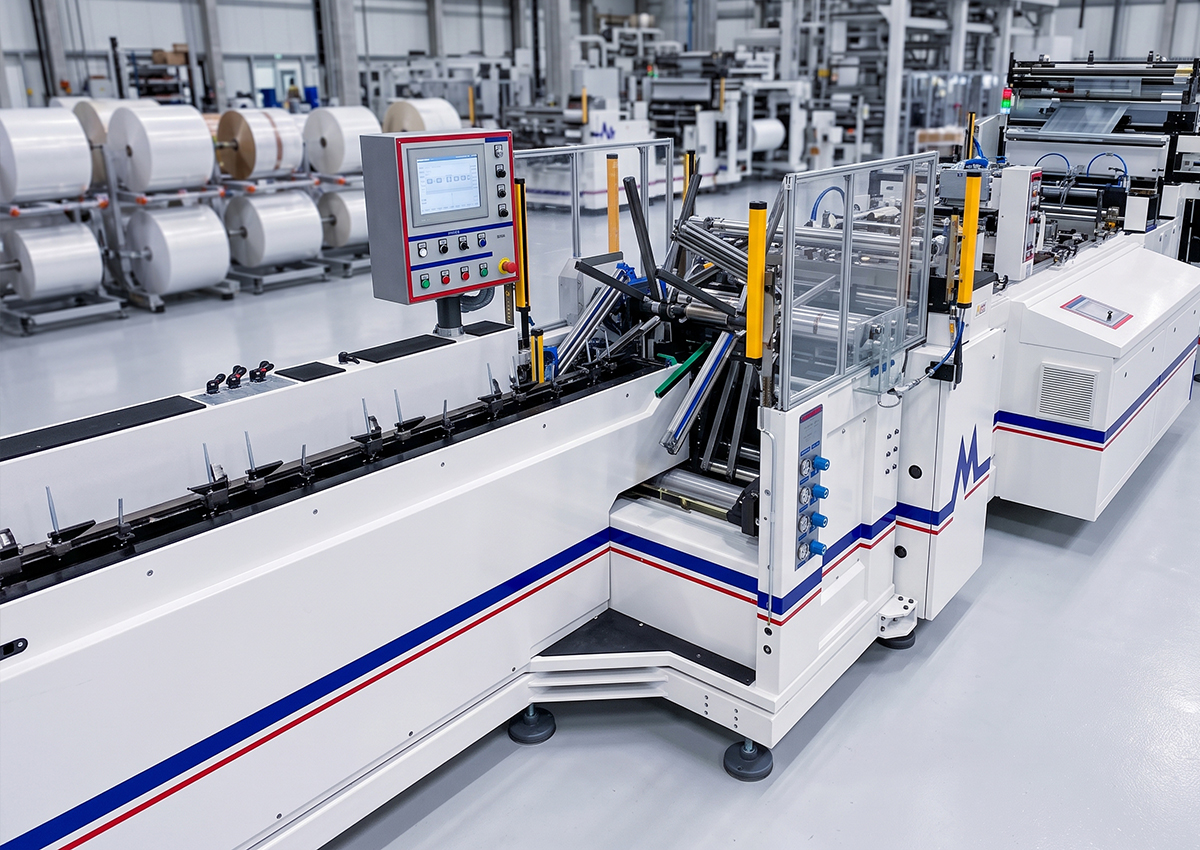

The VEGA Servo Wicketers represent a highly efficient solution for manufacturers looking to produce premium diaper bags with maximum productivity. Inspired by globally proven converting technologies, this machine features intelligent controls, servo-driven unwinding, tension management, and multiple attachment options for various bag styles. Available in 600 mm, 800 mm, and 1000 mm widths, the machine delivers production speeds of up to 450 cycles per minute, making it one of the most productive Diaper Bag Making Machines for large-scale flexible packaging operations.
Technical Specifications of Diaper Bag Making Machine
The Vega 750 Plus , is our high-performance side seal bag making machine, engineered for manufacturers who need production speed without compromising bag quality. Below are the key technical specifications of the Vega 750 Plus:
| Specification | Details- Vega W 600 | Details- Vega W 800 | Details- Vega W 1000 |
|---|---|---|---|
| Bag Width (Draw Length) (mm) | Max: 410 | Min: 75 | Max: 410 | Min: 75 | Max: 410 | Min: 75 |
| Bag Depth- with 1220 mm (48”) Unwind | Max: 480 | Min: 190 | Max: 610 | Min: 250 | Max: 610 | Min: 250 |
| Bag Depth- with 1520 mm (60”) Unwind | - | Max: 680 | Min: 250 | Max: 710 | Min: 250 |
| Gusset Depth | Max: 75 | Min: 25 | Max: 75 | Min: 25 | Max: 75 | Min: 25 |
| Maximum Speed* | Line Speed: 80 mpm | Vacuum Arms: 410 (mm) | Pin Stacker Configuration (No. of Stations): 3+1/4+1 (Optional) | Line Speed: 80 mpm | Vacuum Arms: 410 (mm) | Pin Stacker Configuration (No. of Stations): 3+1/4+1 (Optional) | Line Speed: 80 mpm | Vacuum Arms: 410 (mm) | Pin Stacker Configuration (No. of Stations): 3+1/4+1 (Optional) |
| Types of Webs / Films | HM-HDPE, LDPE, LLDPE, PP, CPP | HM-HDPE, LDPE, LLDPE, PP, CPP | HM-HDPE, LDPE, LLDPE, PP, CPP |
Available Attachments
- Centre Guide / Line Guide
- Separate Film Strip Inserters
- Perforators (Longitudinal / Transverse)
- Header Sealer (Continuous & Intermittent)
- Punch Type Sealer (Servo & Pneumatic)
- Pre-Sealer (Servo & Pneumatic)
- Punch Banks
- Punches (Round Hole, Half Moon, Star, Handle)
- String Zipper Sealing System
- Hot Pin Blocking on Pin Stacker
- Flange Zipper Sealing System
- Captive Flap Formation Attachment
- Diaper Bag Making System
- Round Bottom Bag Attachment
- Square Bottom Attachment
- Motorized Pin Distance Adjustment
- Robotic Pick & Place Automation
- Saddle Stacking for Non-Wicketed Bags
- Custom Special Requirements
Other Bag Making Machines
We offer a comprehensive range of pouch making machines and bag converting solutions designed for different production capacities and packaging applications.

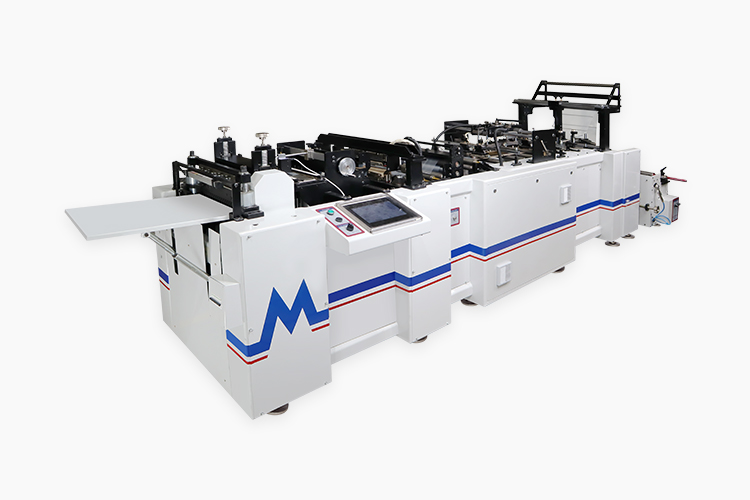

Universal Bag Making Machines

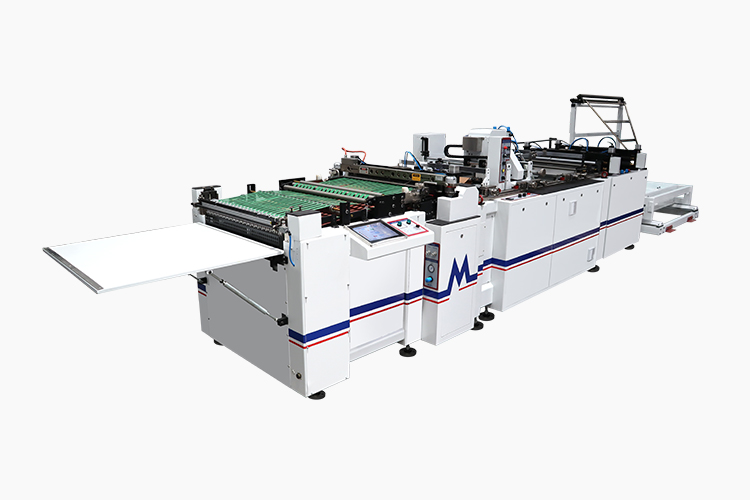

VEGA 800 PLUS

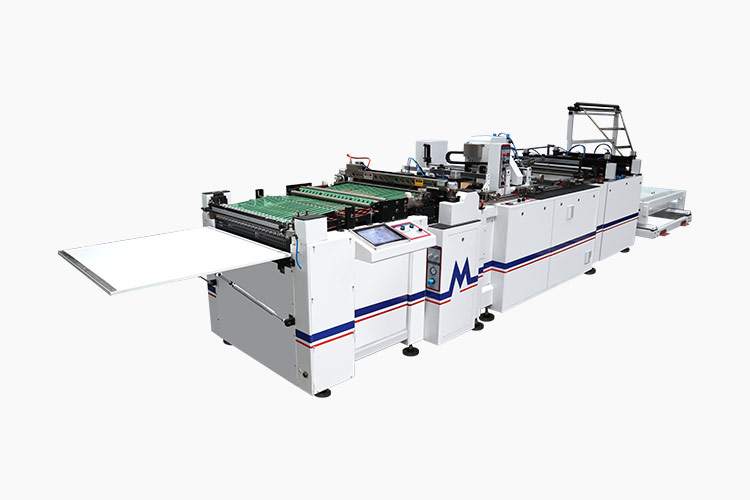

Vega 1200 Split
Why Choose Our Diaper Bag Making Machines?
- High-Speed Manufacturing: Production capability of up to 450 cycles per minute for maximum output.
- Precision Servo Technology: Advanced servo-driven controls ensure accurate sealing, indexing, and bag formation.
- Excellent Film Handling: Maintains optimal web tension for smooth production across different film materials.
- Multiple Bag Configurations: Suitable for manufacturing various diaper bags and hygiene packaging formats.
- User-Friendly Controls: Intelligent HMI with True Memory simplifies machine setup and operation.
- Low Maintenance Design: Engineered for reliable, continuous production with reduced downtime.
- Expandable Attachment Options: Supports zipper sealing, perforation, robotic stacking, and customized bag-making requirements.
Our Diaper Bag Making Machines are developed to meet the evolving needs of modern packaging manufacturers. Combining intelligent automation, robust engineering, and high-speed performance, these pouch making machines help businesses produce premium-quality diaper bags with outstanding consistency and operational efficiency. Whether you're expanding production capacity or upgrading your packaging line, our machines deliver dependable performance, reduced operating costs, and long-term manufacturing value.
